Key Features
Waterproof outdoor design
Built for harsh environments with reliable waterproof and dustproof protection.
Long standby battery
Equipped with a high-capacity battery for extended working time in outdoor deployments.
Multi-interface expansion
Supports CAN, RS232 and RS485 interfaces for flexible sensor and device integration.
Magnetic switch control
Enables convenient power on and off with a sealed magnetic sensing design.
Real-time GPS tracking
Provides real-time 4G positioning and tracking for mobile and fixed assets.
Wireless communication expansion
Supports optional Bluetooth, LoRa, Wi-Fi and other wireless communication modules.
Application Scenarios
Product Overview

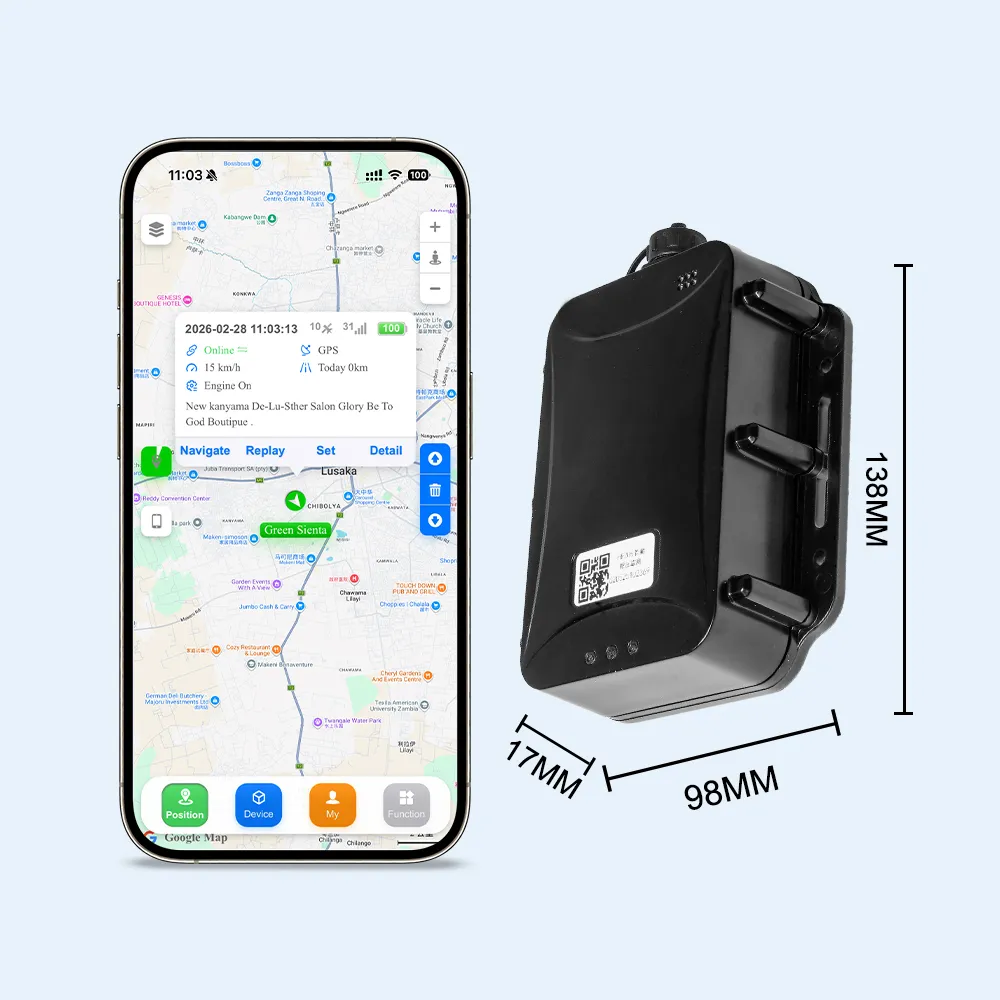

KS168 4G Waterproof GPS Tracker is designed for harsh outdoor environments, delivering real-time GPS/BDS positioning, reliable 4G communication and long standby performance. Built for assets such as vessels, trailers, containers and agricultural machinery, it features a waterproof UV-resistant housing, magnetic switch control, high-capacity battery and expandable CAN/RS232/RS485 interfaces for flexible monitoring and data transmission applications.
Basic Specifications
| Operating Voltage | DC 9-36V | Operating Current | <50mA/12V |
| Battery Capacity | 5000mAh, optional 10000mAh | Communication Network | LTE-CAT1/GSM |
| Positioning Modes | GPS/BDS (Optional GLONASS/GALILEO/QZSS/SBAS) | Positioning Accuracy | Better than 10 meters |
| Operating Temperature Range | -30 to +85 degrees Celsius | Storage Temperature Range | -40 to 85 degrees Celsius |
| Dimensions | 120mm × 100mm × 36mm | ||
