Key Features
IP67 waterproof protection
Built with a sealed IP67 housing for stable use in harsh outdoor and vehicle environments.
Wide voltage input
Supports DC 9-95V power supply for flexible installation on different vehicle types.
Hidden installation design
Compact waterproof structure with built-in antennas for discreet and secure deployment.
Remote fuel/power cutoff
It supports relay control for remote engine immobilization and vehicle security.
Intelligent alarm protection
Supports vibration, power failure, overspeed, illegal start and displacement alarms.
Acc ignition detection
Detects ignition status for smarter trip monitoring and anti-theft logic control.
Application Scenarios
Product Overview
KS199D 4G GPS Tracker is designed for concealed vehicle installation with IP67 waterproof protection, built-in antennas and wide voltage support from 9V to 95V. Compared with standard in-vehicle trackers, it is better suited for motorcycles, e-bikes, outdoor installation environments and vehicles requiring compact hidden deployment. It supports real-time GPS/BDS positioning, ACC ignition detection, optional remote fuel/power cut-off and multiple intelligent alarms, making it a practical solution for anti-theft protection and daily vehicle monitoring.
Basic Specifications
| Functions | Description | |
| Power supply | Backup Battery | |
| Work Voltage | DC 9V – 95V | |
| Work Current | 12V/ average 40mA | |
| Sleep Current | 12V/ lower than 10mA | |
| Internal Battery | 140mAh (3.7V Polymer battery) Optional | |
| Work Temp | -20℃ – 75℃ | |
| Storage Temp | -30℃ – 80℃ | |
| Work Humidity | 10%-85% RH non-condensing | |
| Module Brand/Chip Model | SIMCOM 7670 | |
| Frequency Bands | 7670SA | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM:B2/B3/B5/B8 |
| 7670E | LTE-FDD:B1/B3/B5/B7/B8/B20
GSM:B3/B8 |
|
| 7670C | LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41 GSM:B3/B8 |
|
| SIM card | Standard SIM card | |
| Antenna | Built-in antenna | |
| Antenna spec | PIFA antenna | |
| Module Brand/Chip Model | ZKMicro AT6558D | |
| Location mode | BDS+GPS | |
| Cold Start | Average 32S | |
| Hot Start | Average 1S | |
| Sensitivity (tracking) | -162 dBm | |
| Antenna | Built-in antenna | |
| Antenna spec | 25mm * 25mm * 4mm | |
| GPS frequency bands | L1: 1575.42±1.023MHz | |
| BDS frequency bands | B1: 1561.098±2.046MHz | |
| Satellite channel | 50 | |
| Location accuracy | <10m（1σ） | |
| Timing accuracy | <30ns（1σ） | |
| Speed measurement accuracy | <0.1m/s（1σ） | |
| Max Acceleration | 4g | |
| Max Speed | 515m/s | |
| Max height | 18000m | |
| ACC detection input | be in favor of | |

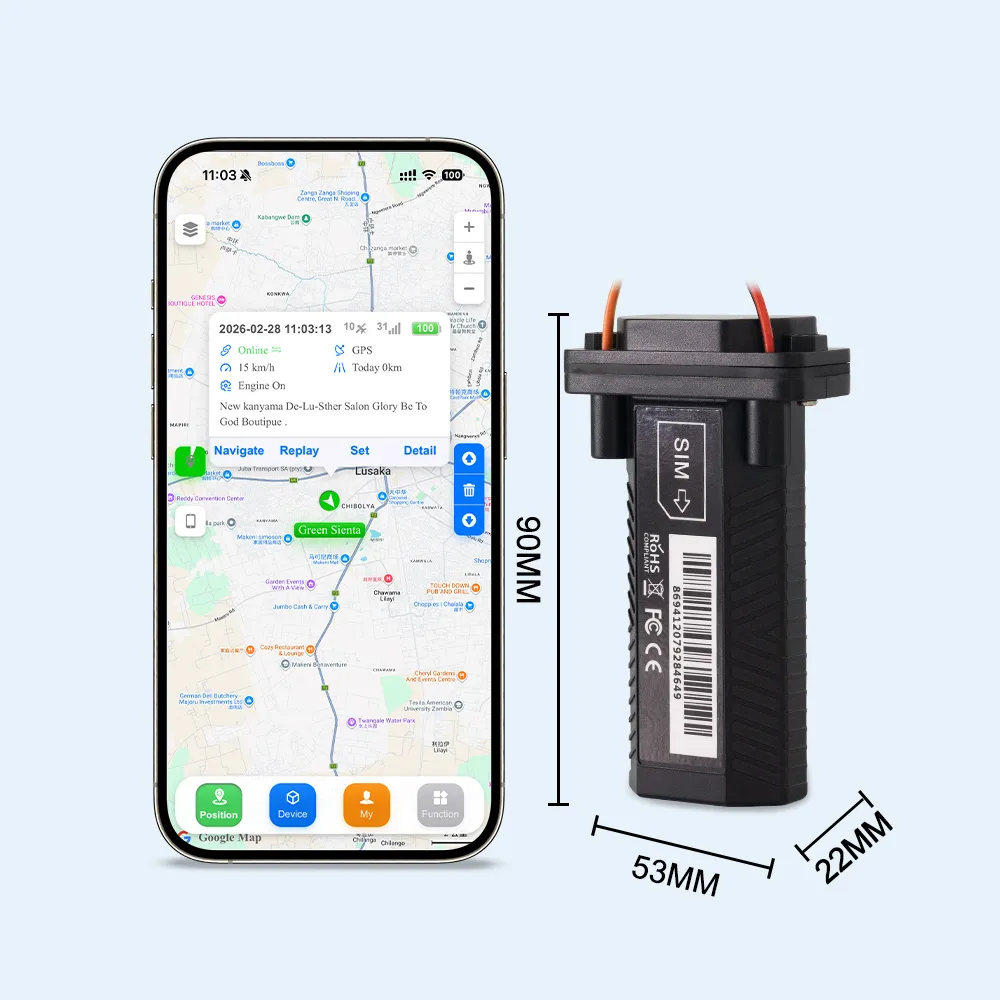

| Device Dimension | 90.6mm * 57mm * 20mm | |
| PCBA Dimension | 85mm*35mm*7.6mm | |
| Housing Material | ABS plastic | |
| IP Grade | IP67 | |
| Unit weight | 68g | |
