KS201

4G Vehicle GPS Tracker with SOS

Description

Key Features

Cigarette Lighter Plug-and-Play

Direct cigarette lighter installation, no wiring required, ready to use in seconds for ultimate convenience.

Triple Positioning & High Sensitivity

GPS+BDS+LBS positioning with -162dBm tracking sensitivity and <10m accurate real-time tracking.

4G Global Full Network Compatibility

Multi-band 4G/LTE for global use, 1s efficient data transmission, stable signal without interruption.

Dual Compensation Function

Blind spot and curve compensation to avoid data loss and positioning deviation.

Multi-alarm Protection

Vibration, overspeed, power failure and geofence alarm with GPRS/SMS dual notifications.

Multi-alarm & SOS Emergency

Vibration, overspeed, geofence alarm + SOS button, GPRS/SMS dual notifications for all-round safety.

Application Scenarios

Cigarette lighter plugfor cars
Real-time monitoring for logistics
Real-time fleet monitoring for taxis
SOS for new energy vehicles

Product Overview

KS-201 is a 4G global edition 2-in-1 cigarette lighter GPS tracker with plug-and-play design, no complex wiring needed for immediate use. It features GPS+BDS+LBS triple positioning, 4G global full network compatibility and dual Type-A/Type-C fast charging ports. Equipped with 3-axis sensor for intelligent power saving, SOS button and multiple alarms, it supports 90-day trajectory playback and fleet management. With DC 9V-32V wide voltage and durable ABS+PC shell, it’s a perfect all-in-one positioning & charging solution for global vehicles.

Basic Specifications

Function name Project feature description
power supply mode battery powered
operating voltage range DC 9V – 32V
working current 12V/65mA
dormant current 12V/average 10mA
Built-in battery capacity 50 mAh (3.7V polymer battery)
operating temperature range -20℃ – 75℃
storage temperature range -30℃ – 80℃
working humidity range Non-condensable at 10% -85% RH
Communication module brand/chip model SIMCOM 7670G
communication band LTE/4G LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/

B25/B26/B28/B66/

LTE-TDD :B34/B38/B39/B40/B41

GSM/GPRS/EDGE

  GSM/2G 850/900/1800/1900MHz
SIM block Nano SIM card
communication antenna built-in antenna
antenna specification FPC antenna
Brand of positioning module/chip model AT6558R
location mode Beidou+GPS+LBS
cold start time Average 32 seconds
thermal start-up time Average 1 second
tracking sensitivity -162 dBm
positioning antenna built-in antenna
antenna specifications 25mm * 25mm * 2mm
GPS frequency range L1:  1575.42±1.023MHz
Beidou frequency band B1:  1561.098±2.046MHz
number of satellite channels 32
positioning accuracy <10m(1σ)
time accuracy <30ns(1σ)
rate accuracy <0.1m/s(1σ)
maximal acceleration 4g
maximum speed 515m/s
maximum altitude 18000m
Type-A charging port DC: 5V/2A; 9V/2A
Type-C charging port DC: 5V/2A; 9V/2A
SOS Support SOS button

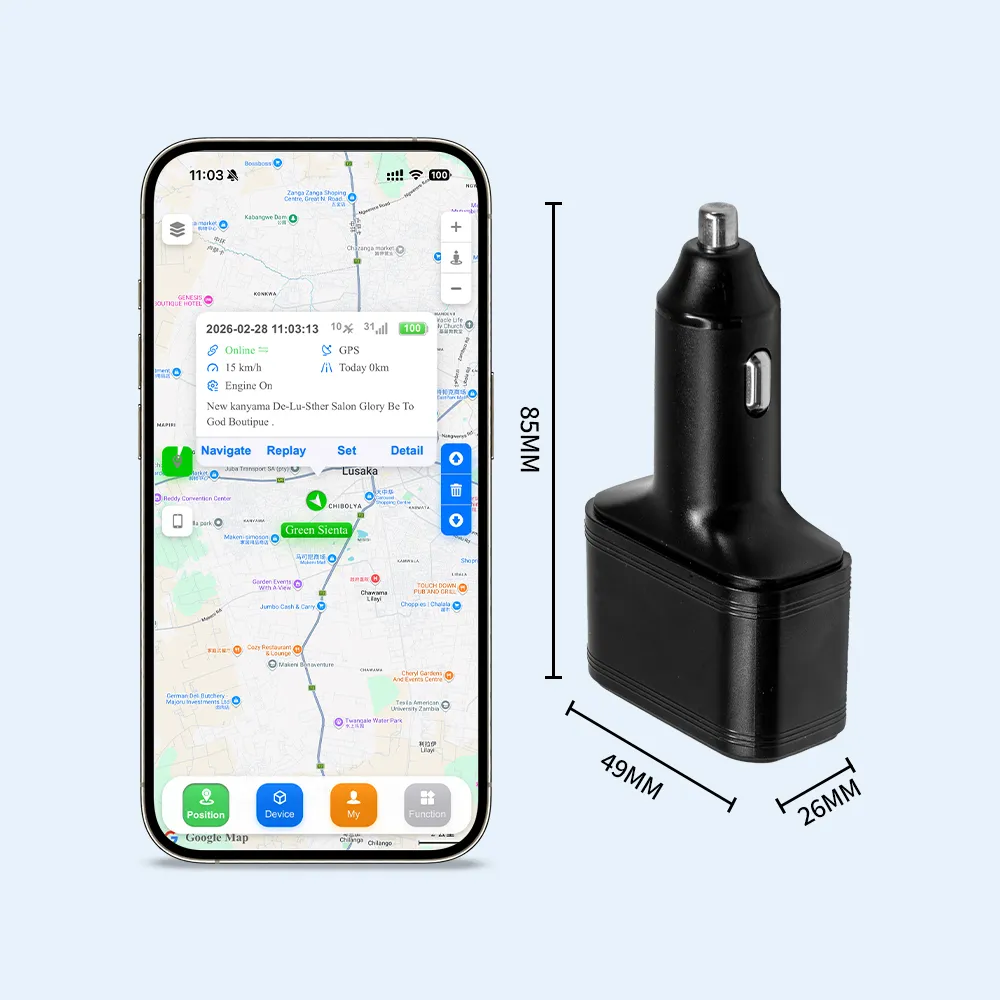

Host dimensions (length, width, height) 85mm*49.2mm*26mm
shell material ABS+PC
weight of main body 41 grams
