Key Features
Four battery capacity options
Available in 1200mAh / 3000mAh / 6000mAh / 10000mAh versions to meet different standby and deployment needs.
No wiring installation
Compact rechargeable design with no external wiring required for quick and flexible deployment.
SOS emergency alarm
Supports SOS button for emergency alerts and rapid response.
Multiple intelligent working modes
Supports real-time mode, timed mode, vibration wake-up mode and ultra-low power customized mode.
Long standby power saving
Features intelligent sleep, static hibernation and vibration wake-up for optimized battery life.
Real-time tracking and alarm alerts
Supports live tracking, route playback, speed alarm, vibration alarm and geofence alerts.
Application Scenarios
Product Overview

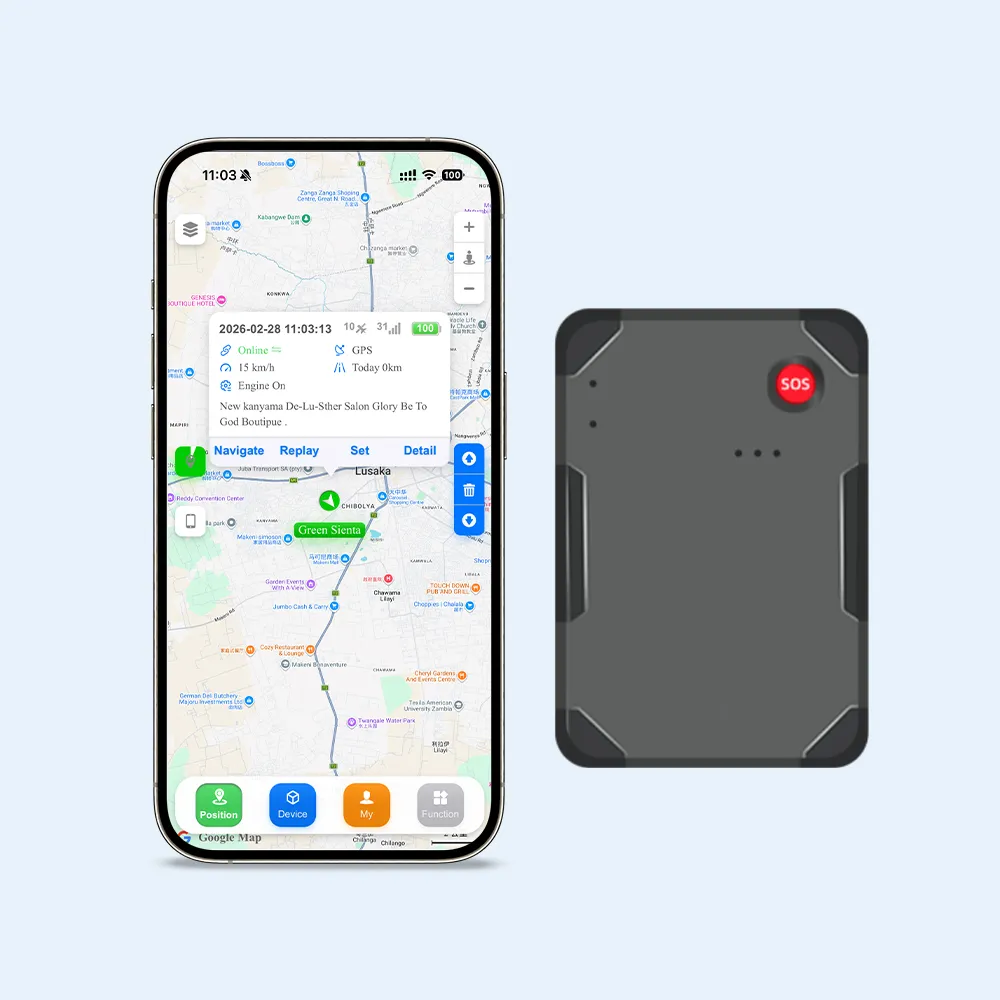

KS300 4G Rechargeable GPS Tracker is a compact wireless tracking device designed for flexible deployment without wiring. It supports GPS, BDS, LBS and WiFi quadruple positioning, multiple intelligent working modes and real-time alarm reporting for efficient vehicle and asset monitoring. To suit different usage scenarios, KS300 is available in 1200mAh, 3000mAh, 6000mAh and 10000mAh battery versions, offering users more flexibility in standby time and deployment requirements.
Basic Specifications
| Specification content | Specification |
| sizes | 55*32*18mm |
| weights | 41g (without magnet) |
| internal battery | 1200mAH (3.7V) |
| Charging Voltage | DC 5V/600mA (type-c) |
| operating temperature | -20°C to+60°C |
| Storage temperature | -20°C to+70°C |
| transducers | Precision Vibration Sensors |
|
communications band |
LTE – FDD:B1/B3/B5/B8
LTE – TDD:B34/B38/B39/B40/B41 |
| 4G Module | A7670C |
| GPS module | CoreStar Chips |
| rms error | S-degree |
| Dynamic output range | -15~-108dbm |
| receiver sensitivity | -107dbm |
| Maximum frequency error | ±0.1ppm |
| (level of) sensitivity | Cold start: -145 dbm
Hot start: -156 dbm Warm start: -145 dbm Navigation: -160 dbm Tracking: -162 dbm |
| position accuracy | <5m |
| First positioning time | Cold start: 32 seconds on average |
| GSM Antenna | internally installed |
| GPS antenna | internally installed |
| LED indicator | Power Supply, Indicating Status |
| transportation protocol | TCP |
| Power Detection | Indicator light is on when power is applied |
| Data reporting | Real-time update of GPS data and support for customization |
| electric fence | TBD |
| speeding alarm | Vehicles traveling faster than the set speed upload speeding alarms |
| GPS data | Real-time location updates |
| vibration alarm | Vehicle vibration reporting in a fortified state |
