Key Features
Solar Charging & Long Standby
Backboard-integrated solar panel for continuous power supply, paired with 10400mAh high-capacity battery, ensuring long-term operation.
Dual Unlock Modes
Authorized RFID key (supports 50 keys) and SMS/password unlock, with on-site unlock available in no-network areas.
GPS+LBS Dual Positioning
Real-time location tracking and positioning, with electronic fence (up to 10) for entry/exit alerts.
IP67 Waterproof & Durable
Engineering plastic housing with IP67 rating, adapted to harsh logistics and outdoor environments.
Multi-Alarm Protection
9 types of alerts (unauthorized unlock, vibration, low battery, rear cover opening, etc.) with SMS/platform synchronization.
Dual SIM & Remote Management
Dual Micro SIM card slots for global network adaptation; supports OTA firmware upgrade and remote parameter configuration.
Application Scenarios
Product Overview
KS-500 Solar Smart Electronic Lock is a logistics-focused security device upgraded with a solar-powered backboard, retaining all core functions of the original model. Equipped with 4G communication, GPS+LBS dual positioning and 10400mAh large-capacity battery, the solar panel enables continuous charging to extend standby time. Supporting RFID/password dual unlock, IP67 waterproof protection and multi-dimensional alarms, it adapts to dual SIM global networks and polygonal electronic fences. Designed for container, cargo transport and outdoor asset security, it provides reliable remote monitoring, anti-theft protection and real-time location tracking, ensuring the safety and traceability of logistics assets.
Basic Specifications

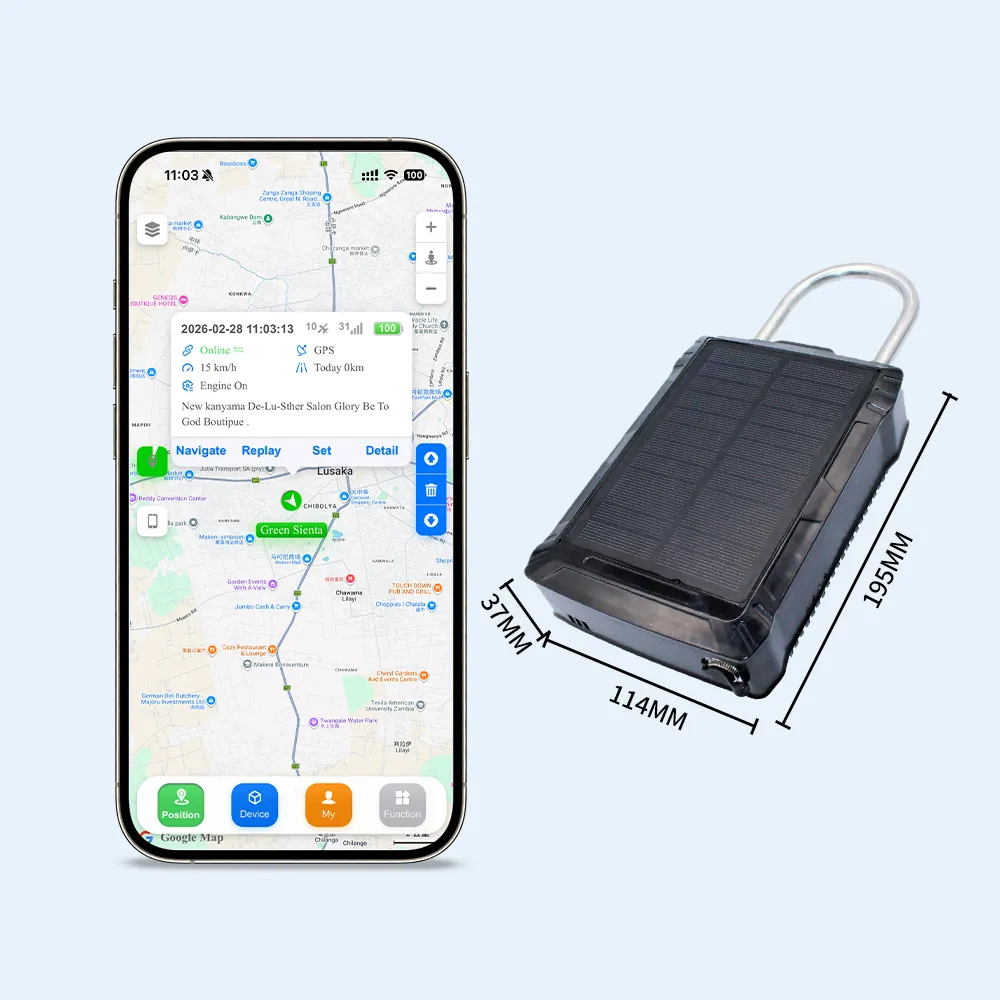

| size | 195mm x 114mm x 37mm |
| weight | 1000g (including main unit and 35cm lock cable) |
| material | engineering plastic |
| Global Positioning System module | Window 12BL |
| GSM module | Quectel M26 or UC15 or EC25 |
| working temperature | -20°c–+80°c |
| storage temperature | -40°c-+80°c |
| damp | 5%—99% |
| normal element | The rechargeable battery is 10,400 meters long |
| Average operating current | <90 meters A |
| Average current standby status | <100uA |
| business data processing | 2G device (10400mAh) normal working mode: 100 hours |
| Normal working mode of 3G device (10400mAh): 70 hours | |
| waterproof | ip67 |
| transmission mode | Support TCP (GPRS) or SMS (SMS) |
